12V / 5A MINI Fiber Laser Marking Controller With 3 USB Ten Point Touch

Name: 12V 5A MINI Fiber Laser Marking Controller With 3 USB Ten Point Touch
Brand: BJJCZ
Price: 1 USD

Buy cheap 12V / 5A MINI Fiber Laser Marking Controller With 3 USB Ten Point Touch product

Brand Name : BJJCZ

Model Number : MINI-02

Place of Origin : CHINA

MOQ : 1SET

Price : negotiation

Payment Terms : T/T

Supply Ability : 100set

Packaging Details : Carton

USB2.0 : 3 USB

Touch Screen : Ten Point Touch

Contact Now

MINI marking control system:

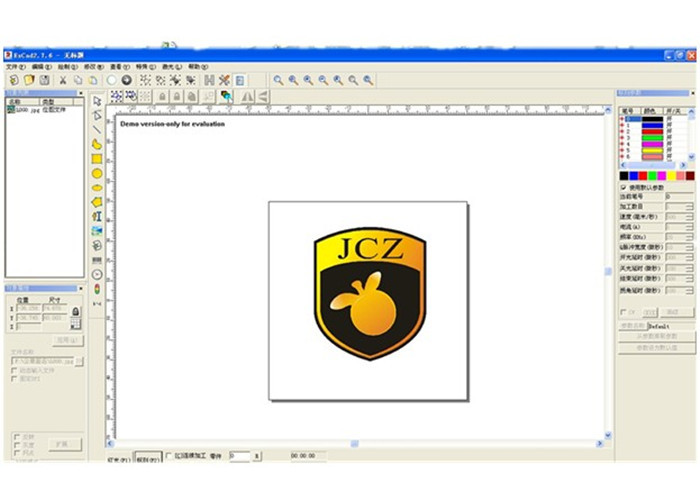

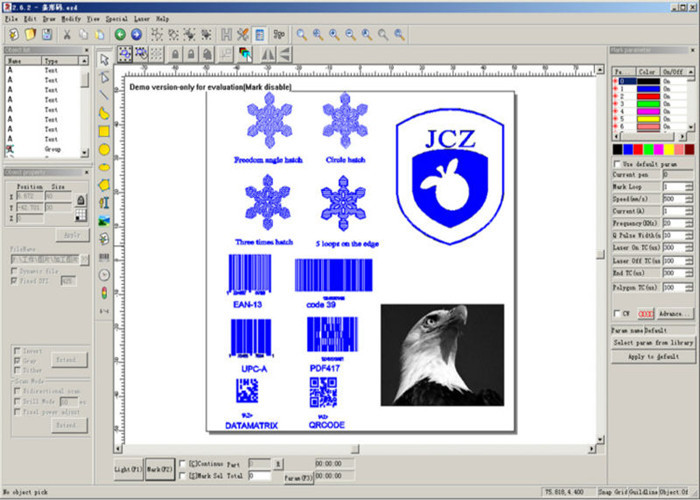

The MINI marking control system integrates an industrial computer, an LMC marking control card and a touch display to support touch screen operation. The operating software interface is simple and feature-rich.
Smooth operation. After many years of application in the industrial field, the MINI marking control system has carried out a special anti-interference design, and the industrial site has strong anti-interference ability.

12V / 5A MINI Fiber Laser Marking Controller With 3 USB Ten Point Touch

Describe

Fiber	CO2
MINI laser pc use DB50 male socket for scanhead output signal, laser source control signal and IO signal Connect to the transfer board then output scanhead, laser source control and IO signal	MINI laser pc use DB50 male socket for scanhead output signal, laser source control signal and IO signal Connect to the transfer board then output scanhead, laser source control and IO signal
Digital scanhead signal , can connect with all the scanheads directly in the market (XY2-100 protocol)	Digital scanhead signal , can connect with all the scanheads directly in the market (XY2-100 protocol)
Encoder connect pins , Sensor input , Measure the line speed timely	Encoder connect pins , Sensor input , Measure the line speed timely
Connect with Fiber laser via DB25 cable	Con2 for CO2 and YAG laser
5 Input (TTL signal)	9 Input (TTL signal)
4 Ouput (TTL signal)	9 Ouput (TTL signal)

Performance

System	Windows 10
USB2.0	3 USB
Touch Screen	Ten Point Touch
Control	USB 2.0 Com
Power Supply	12V/5A
Memory (RAM)	2.00GB(1.89GB Usable)
Storage	High Speed 32GB Solid State Dis

12V / 5A MINI Fiber Laser Marking Controller With 3 USB Ten Point Touch
