BJJCZ / EZCAD Fiber / DLC Laser Control Board For Marking Engraving

Name: BJJCZ EZCAD Fiber DLC Laser Control Board For Marking Engraving
Brand: BJJCZ
Price: 1 USD

Buy cheap BJJCZ / EZCAD Fiber / DLC Laser Control Board For Marking Engraving product

Brand Name : BJJCZ

Model Number : DLC2-MC

Place of Origin : CHINA

MOQ : 1SET

Price : negotiated

Payment Terms : T/T

Supply Ability : 1000SET

Delivery Time : 3-5 WORK DAYS

Packaging Details : Carton

Application : Fiber laser marking machine,co2 laser machine

Product name : Fiber laser control board,JCZ laser marking board

Laser type : Fiber Laser,CO2 Laser

Warranty : 1 Year

Usage : Marking Engraving

Language : English French Japanese Korean Chinese,English

Contact Now

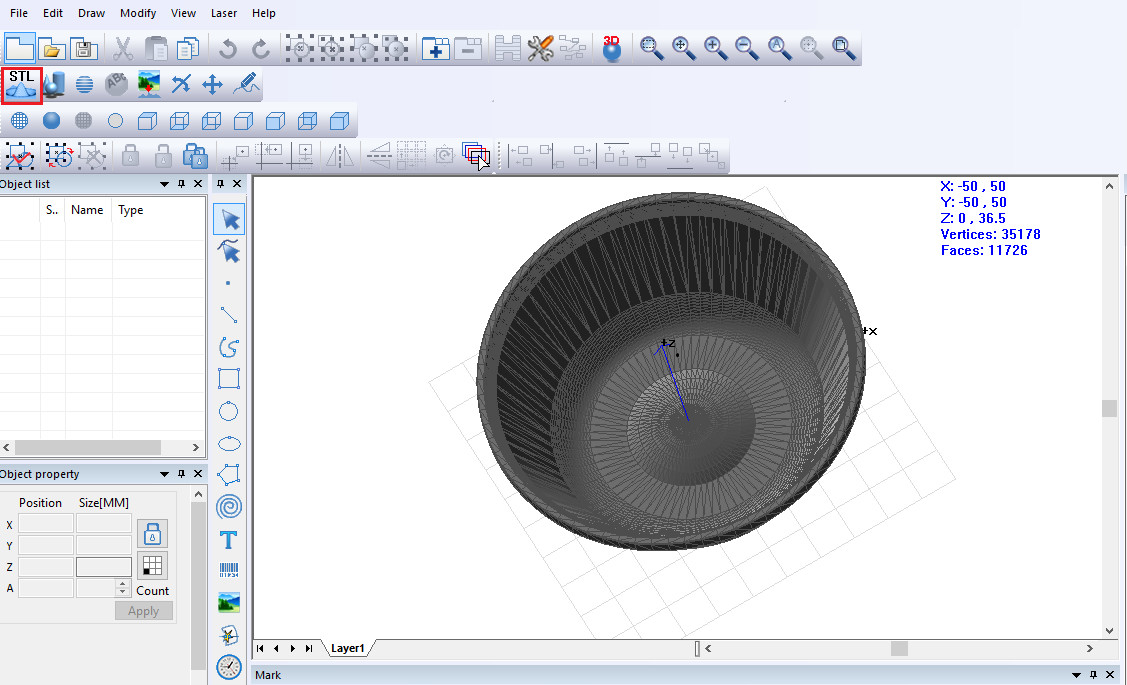

The DLC2-MC control board and EZCAD3 software can complete real-time synchronous control of 2D/3D scanning galvanometer and laser. The main working characteristics of the board are as follows:

(1) Support the following galvanometer protocols: XY2-100 (16-bit), XY2-100 (18-bit), SL2-100 (20-bit), JCZ-100; at the same time, special protocols can be customized according to customer requirements.

(2) Supports fiber, CO2, QCW, SPI, UV, YAG and other lasers through the laser expansion card

(3) DLC2-MC supports encoder feedback, interpolation motion and two-axis linkage

(4) Support 10 input and 8 output ports

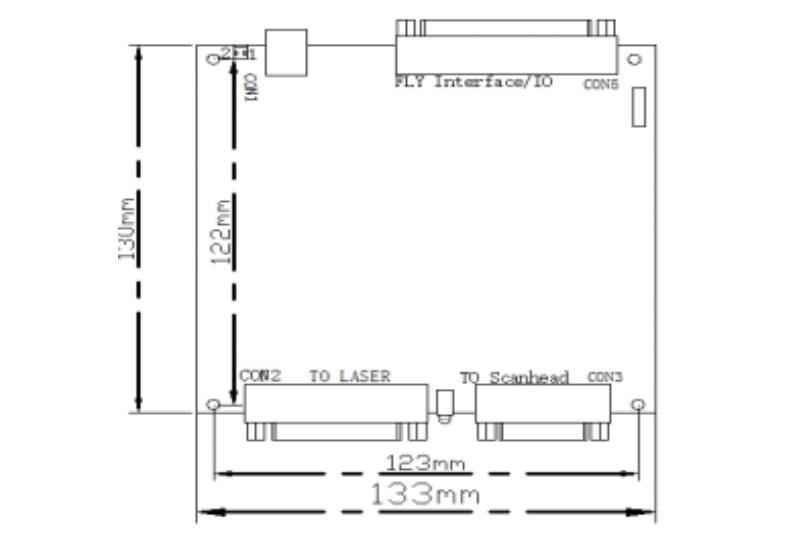

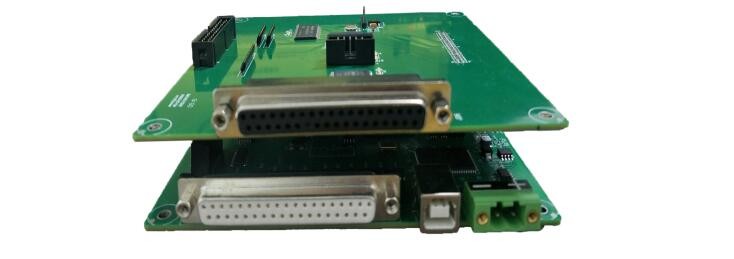

The board interface is shown in Figure 2 and Figure 3:

BJJCZ / EZCAD Fiber / DLC Laser Control Board For Marking Engraving

The galvanometer interface (CON3) supports the enhanced XY2-100 data protocol, which can drive 2D/3D galvanometers. The interface type is 15-pin double-row pin (female head, 2.54mm pitch), its definition is as follows:

Pin	Name	Description
1,9	Clock	The galvanometer data is output according to the standard XY2-100 protocol
2,10	Synchronization signal
3,11	X-axis data
4,12	Y-axis data
5,13	Z-axis data
8,15	Digital GND	Digital GND
Others	Reserved	Reserved
